G4 Powerbook and iBook FAN control.

Posted by Andrea Fabrizi on June 11, 2007


G4FanControl is a software I’ve developed more or less 10 years ago, when I faced overheating problems with my old PowerBook G4. I sold it for some years and now I decided to make it free and opensource. The code is available on GitHub

As anyone who has put their hands on this wonderful laptop can confirm, the operating temperatures quickly climb and it soon becomes practically impossible to touch, especially on the bottom under the display. What makes this situation truly crazy is that this laptop actually has two powerful FANs which are not used at all by the operating system, probably to save battery power.

This utility enables you to manually program the hardware fan controller of your iBook/PowerBook G4 laptop, increasing the temperature threshold and the fan RPM.

The G4 Powerbook and IBook cooling system is managed by the ADT7467 controller from Analog Devices. The ADT7467 chip has one integrated temperature sensor (Local Sensor) and two more remote sensors and everything can be controlled using a convenient I2C interface.

In the next graph, the Temperatures change can be observed before and after the fan was set to the maximum power!


Build from source

$ git clone https://github.com/andreafabrizi/G4FanControl.git
$ cd G4FanControl
$ make

Precompiled packages

G4FanControl 0.6.1 with GUI

Widget 0.1 (Require G4FanControl 0.6.1)


Version 0.6.1

  • Fixed issue with Leopard 10.5.3

Version 0.6

  • Now G4FanControl is fully compatible with Leopard!
  • Retro-compatibility with Tiger
  • Fixed incompatibility issues with JVM<1.5
  • Removed password prompt on start-up
  • Auto-installation package
  • Other minor fixes

Version 0.5

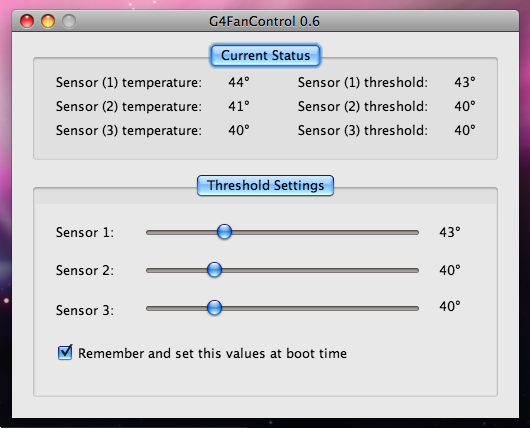

  • Introduced GUI

Version 0.4

  • Independent temperature limit control for each sensor
  • New temperature sensors limits range: min:20 - max:100
  • Fixed issues with some iBook and Powerbook models
  • Added a single-line formatted output (to easy control from external applications, like gui)
